The Ultimate Covert Trailer GPS Tracker
The Lumina Stealth Trac is a covert trailer GPS tracker hidden inside a fully functional LED trailer light. Thieves look for GPS trackers – they don't look at the tail light. While it works as a normal stop, turn, or marker light, the concealed tracker quietly reports your trailer's location, powered by the trailer's own light circuits and backed by an internal battery that keeps reporting for up to 3 months even with no power connected. The device is $199 and the tracking service is just $19 per month, with no contracts.
See the Live Trac platform live Watch a device move in real time on the tracking dashboard – no signup required.
Hidden GPS Tracker Disguised as a Trailer Light
Most trailer tracking devices are boxes a thief can spot and rip off in seconds. The Lumina Stealth Trac is different: it is the trailer light. The GPS module, 4G LTE modem, and antennas are sealed inside a weatherproof IP67 housing behind a working LED lens, indistinguishable from a standard trailer light and wired into your existing loom.
- ✔ Truly covert – a hidden GPS tracker inside a working LED light
- ✔ Functions as a real stop / turn / tail or marker light
- ✔ Powered by the trailer's light circuits – nothing extra to wire
- ✔ Internal backup battery reports up to 3 months unpowered
- ✔ Weatherproof IP67, built for the road
- ✔ 4G LTE coverage with hybrid GPS + GLONASS accuracy
- ✔ Instant alerts, geofences, and location history
- ✔ $19/month per device – no contracts
Built for Trailer Theft Recovery
Trailer theft is fast: hitch up, drive away, gone in under a minute. Because the Lumina Stealth Trac hides in plain sight, it keeps reporting after the theft – when it matters most. When the trailer is connected to power and moving, it reports every 5 minutes; unpowered and moving, every 15 minutes on its internal battery. Set a geofence around your yard and get an instant alert the moment a trailer leaves, then hand law enforcement a live map to recover it – along with whatever cargo and equipment was inside.
Real-Time GPS Tracking for Commercial Trailers
Every Lumina Stealth Trac includes access to our Live Trac platform – the same GPS trailer tracking software used across our vehicle and fleet trackers. Watch every trailer on one map from any computer or phone, replay where each one has been, and get email or text alerts for movement, geofences, and arrivals. For fleets, that means verified drop and pickup times, no more lost trailers in big yards, and one login for your entire mixed fleet of trackers.
Protect Equipment, Cargo, and Fleet Assets
The Lumina Stealth Trac fits wherever a trailer light fits – making it the ideal GPS tracker for enclosed trailers, cargo trailers, utility trailers, equipment trailers, car haulers, boat trailers, and rental fleets. Four models cover the common light formats (see the Additional Models tab):
4" RoundThe classic round stop/turn/tail light format – the most common trailer light in North America.
4" Square ComboA square LED stop/turn/tail combo light for trailers with square light cutouts.

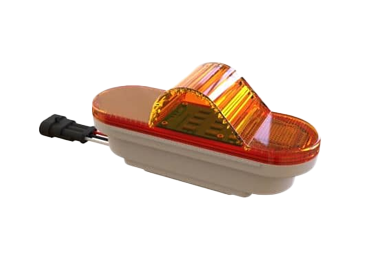

6" Side MarkersOval side-marker formats for enclosed and larger commercial trailers.
Any asset, one platformMix trailer, vehicle, and portable asset trackers on a single Live Trac login.
Why Businesses Choose LiveViewGPS
LiveViewGPS has provided GPS tracking to businesses, fleets, and security professionals since 2007. Every Lumina Stealth Trac is backed by unlimited US-based technical support, simple month-to-month billing with no contracts, and our 100% no-risk guarantee. Whether you're protecting one utility trailer or rolling out fleet trailer tracking across hundreds of assets, our team will help you get set up right.
Questions about covert trailer tracking? Our US-based team can help you choose the right model and plan.
Lumina Stealth Trac FAQs
What is the Lumina Stealth Trac?It's a covert trailer GPS tracker concealed inside a fully functional LED trailer light. It works as a normal stop/turn/tail or marker light while a hidden GPS module reports your trailer's location over 4G LTE to the Live Trac platform. How is it hidden from thieves?There is no visible tracker to find. The GPS, modem, and antennas are sealed inside the light housing behind a working LED lens, wired into the trailer's existing light loom – indistinguishable from a standard trailer light. How much does it cost?The device is $199 with free shipping, and the tracking service is $19 per month per device with no contracts. All four light models are the same price. How often does it report its location?When connected to trailer power and moving, it reports every 5 minutes. When unpowered and moving, it reports every 15 minutes on its internal battery. What happens if the trailer is unhitched or stored?The internal 3,000 mAh backup battery keeps the tracker reporting for up to 3 months with no power connected, so a parked or stolen trailer stays visible. It recharges automatically from the trailer's light circuits when reconnected. Is it weatherproof?Yes. The Lumina Stealth Trac is rated IP67 weatherproof, with a high-impact polycarbonate lens and PC/ABS housing, and operates from -20°F to +175°F. How hard is it to install?It installs like a regular trailer light: mount it in a standard light cutout and connect it to the existing wiring loom. It draws power from the tail and brake light circuits – no separate power run needed. Which trailers does it fit?Four models cover the common formats: a 4" round stop/turn/tail light, a 4" square combo light, and 6" oval side markers – fitting utility, cargo, enclosed, equipment, boat, and commercial trailers. See the Additional Models tab. Is there a contract?No. Service is billed month-to-month at $19 per device with no long-term contract, backed by our 100% no-risk guarantee.
Lumina Stealth Trac Specifications
| Cellular Network | LTE FDD Cat M1: (B2)/1900, (B4)/1700, (B12)/700, (B13)/700, (B66)/1700 MHz
GSM/GPRS: 850 / 900 / 1800 / 1900 MHz |
| Data Rates | LTE FDD: 588 Kbps (DL) / 1119 Kbps (UL)
EGPRS: 296 Kbps (DL) / 236.8 Kbps (UL) |
| Satellite Location (GNSS) | Hybrid GPS, GLONASS, SBAS engine (WAAS, EGNOS, MSAS) | 56 channels |
| Tracking Sensitivity | -167 dBm |
| Acquisition Sensitivity | -147 dBm |
| Location Accuracy | <2.5 m CEP @ -130 dBm |
| Antennas | Internal cellular and GPS antennas |
| Voltage | 9–15V |
| Amperage | 0.018A–1.5A |
| Power Consumption | <0.1 mA @ 12V (deep sleep)
<20 mA @ 12V (tail light)
<150 mA @ 12V (stop and tail light)
<800 mA @ 12V (active tracking and recharging) |
| Backup Battery | 3.7V Li, 3,000 mAh |
| Weatherproof Rating | IP67 |
| Operating Temperature | -20°F to +175°F |
| Storage Temperature | -50°F to +195°F |
| Material | Polycarbonate lens | PC/ABS housing |
| Lens Color | Red / Clear |
| Housing Color | White |
| Product Dimensions | 4 in. diameter × 2 in. height |
| Product Weight | 9 oz (256 g) with battery (net) |
📄 Download Lumina Stealth Trac PDF
Every Lumina Stealth Trac comes with full access to the Live Trac platform – our secure, browser-based GPS tracking software. Log in from any computer, tablet, or phone, 24/7, with nothing to download. You get a private username and password and can watch your vehicles in near real time, replay where they have been, and set the exact alerts that matter to you.
See the Live Trac platform in action Take a full test drive of the live tracking dashboard – no signup required.
One platform, every use case
Business & fleetsBoost productivity, curb waste, verify labor costs, cut fuel use, stop unauthorized use, and improve customer service.
Personal & familyKeep a caring eye on teen and elderly drivers and always know where the family vehicle is.
Security & surveillanceLive tracking for security professionals and executive-protection teams.
Any Live Trac deviceWorks with covert trailer trackers, hardwired vehicle trackers, plug-in, and portable trackers – all on one login.
What you can do with Live Trac
- ✔ Truly live updates – as fast as every 5 to 10 seconds
- ✔ Pinpoint-accurate position updates
- ✔ Unlimited email & text alerts
- ✔ High-definition historical playback
- ✔ Google satellite & street-view mapping
- ✔ Live NOAA weather overlay
- ✔ Public-view map embed for any website
- ✔ Easy device grouping & management
- ✔ Driver editor – assign drivers to vehicles
- ✔ Data retention: 90 days standard, up to 12 months
Smart alerts
Get notified by email or text – to one or many recipients – the moment something happens:
- ✔ Geofence alerts (radius or custom poly-fence)
- ✔ Speed alerts over a threshold you set
- ✔ Ignition on/off alerts
- ✔ Route-deviation alerts
- ✔ Power & low-battery alerts
- ✔ Arrival & departure notifications
Historical playback
Because location is captured as often as every 5–10 seconds, you get a true picture of each vehicle's day. Replay any trip on demand, with 90 days of history standard and up to a full year available on request.
Public-view map embed
Need lots of people to see a vehicle's location? Turn on the public-view feature to share live location on any website – no username or password required. It is popular with shuttles, food trucks, and delivery fleets, and can be customized with your own map and company logo.
Access anywhere, plus mobile apps
Open Live Trac on any web-enabled computer or smartphone, or use the optional iPhone and Android apps. The iOS app uses Apple Maps and the Android app uses Google Maps, and both include team features so members can share their location with one another.
Developer API & custom reports
A robust REST API lets you pull all of your vehicle data programmatically, and our team can build custom reports tailored to exactly what your business needs.
Ready to see it for yourself? Explore the full Live Trac platform with our interactive demo.
Month-to-Month Subscription
| Plan | Reporting | Monthly Price |
|---|
| Standard | Location updates every 5 minutes (powered & moving); every 15 minutes on battery | $19.00 / month per device |
Every subscription includes
- Full access to the Live Trac GPS tracking platform
- Unlimited alerts and notifications – geofence, movement, and more
- Web and mobile-app access – log in from any device
- Location history and trip playback
- Unlimited US-based technical support
Billing
- No contracts – simple month-to-month billing per device.
- One-time activation of $19.95 per device.
- Track multiple trailers and mix with any other Live Trac devices on a single login.
|
