Global Asset Tracking - Near Global Coverage:
The LiveView Satellite Tracker (SX1) represents a breakthrough in satellite-based asset monitoring and tracking technology.
- Operating on Globalstar's Low Earth Orbit (LEO) simplex satellite data network
- GPS Visibility - Event Monitoring - Remote Asset Data - Near Global Coverage
- Track Assets On Motion - Time Track - Alarm Events - Engine Hours
Innovative, Compact, Rugged Design Military Grade Specs:
With the industry's smallest footprint of only 7.25 x 3.25 x 1 inch (184 x 83 x 25 mm) and weighing only 13 ounces (369 g), the rugged SX1 carries the highest environmental ratings available for any satellite or terrestrial tracking device.
Long-Life, Low Maintenance, Easy Install:

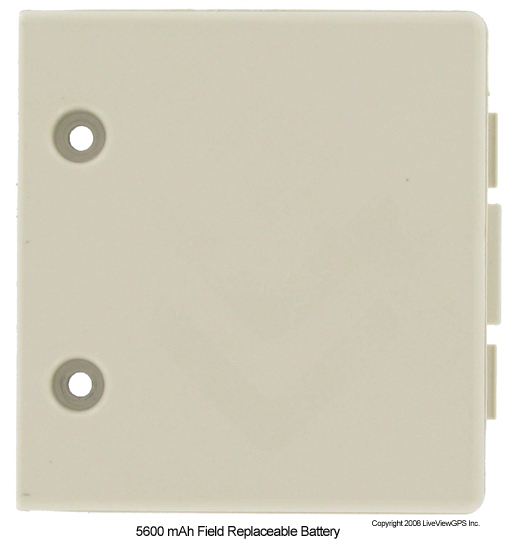

Delivering up to seven years (1 locate per day) of uninterrupted service on a single and easily field-replaceable lithium battery, the SX1 can be installed, activated and operational in less than one minute. The SX1 is able to track and monitor any asset nearly instantly. The SX1 is the product of choice for applications requiring low-maintenance, long-life solutions.
SX1 Battery Life:
Reliability, Expansion, Integration:
The pinpoint accuracy of the SX1 GPS chipset and satellite communications provides more reliable tracking of remote assets than cellular LBS systems or proximity RFID tags because it communicates dependably via satellite extending its range far beyond cellular and RFID coverage.
For expansion, the functionality of the SX1 is enhanced through the serial USB port. Supporting up to eight external sensors, the SX1 provides additional capabilities to meet the demands of real-time security, alarm reporting and asset conditions. The internal motion sensor and highly configurable event alarms help customers manage their security concerns when high-value assets are at risk.
Cost-Effective Global Coverage:
Satellite communications provide near-global coverage and the Simplex Data Network provides the most cost-effective solution available for monitoring assets from continent to continent and across urban and remote areas. Not only are LEO satellite communications more reliable for data transmission than terrestrial systems, they also offer substantial benefits over Geostationary Earth Orbit (GEO) satellites.
The advantages include lower power requirements, reduced latency, less shadowing from buildings, stacked containers, etc. and, more importantly the redundancy and increased reliability of single satellite failure. The SX1 operates globally out of the box and does not require re-programming before tracking assets moving to other global locations.

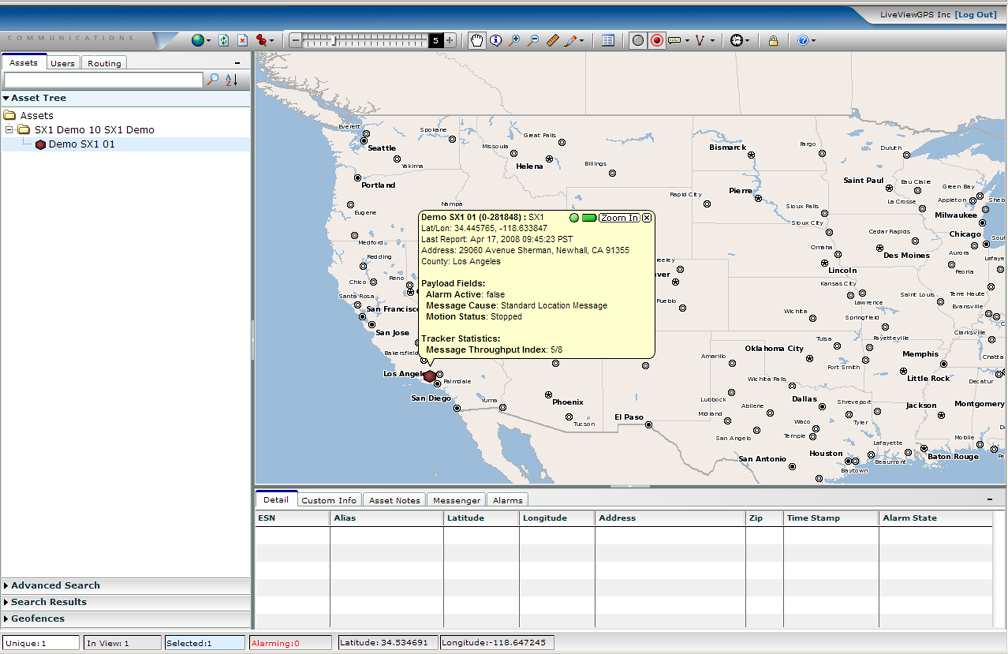

The LiveView Solution: Total Asset Visibility: Web Based Management:
Web based management from anywhere in the world, all you need is an internet connection.
Programmed & Ready To Go Out Of The Box:
SX1 Devices Are Shipped Programmed To Your Custom Tracking Schedule. Tracking Variables Include TIME BASED, As well as on motion. You will also be given a username/password as well as a web url to login to track your SX1.
SX1 Coverage Areas
The SX1 Transmits Its Positions Via A Satellite Transmitter On The Globalstar Satellite Network, It Must Have A Clear View To The Sky To Work Properly.
