MLT400I Worldwide Satellite Based Fleet Management & Tracking System

All satellite based means the MLT-400I works around the globe. The MLT-400I works in all areas, including those regions with no cellular coverage. If you operate your vehicles in areas with poor or no cellular coverage, consider the MLT-400I.

Included with the MLT-400I is a GPS receiver, two-way satellite communications modem, as well as an optional built-in on board diagnostic tool. Vehicle management data capability that works from anywhere on planet earth.

Using the Iridium satellite network, you will be provided with mission critical data in a matter of seconds.

Features:

• 100% Satellite coverage
• 100% Web based
• Self contained
• Near real-time asset location, speed and direction
• Improved data transmission speed for mission critical information via the Iridium satellite network
• Optional integrated OBDII diagnostic interface

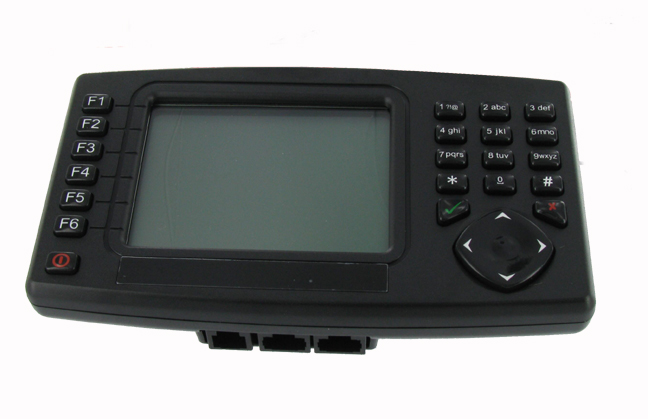

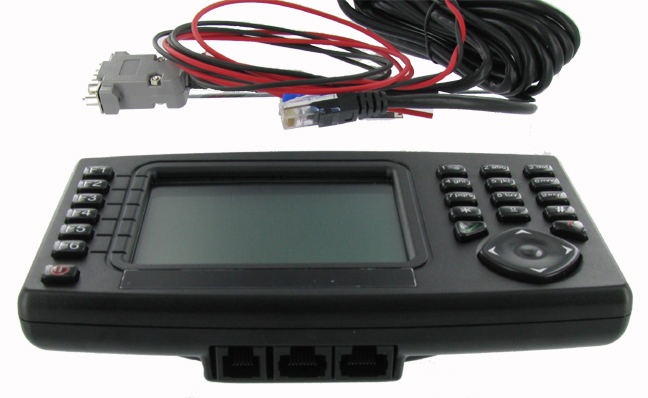

• Optional two-way messaging terminal
• Automatic reporting of all asset information
• Stop and Idle Reports
• Excessive Speed Alerts
• Boundary and Geofencing with Automated Alerts
• Scheduling and Dispatch functions
• NEMA 4X type enclosure for harsh environments

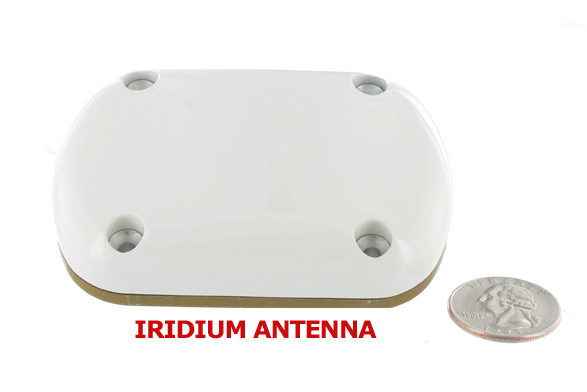

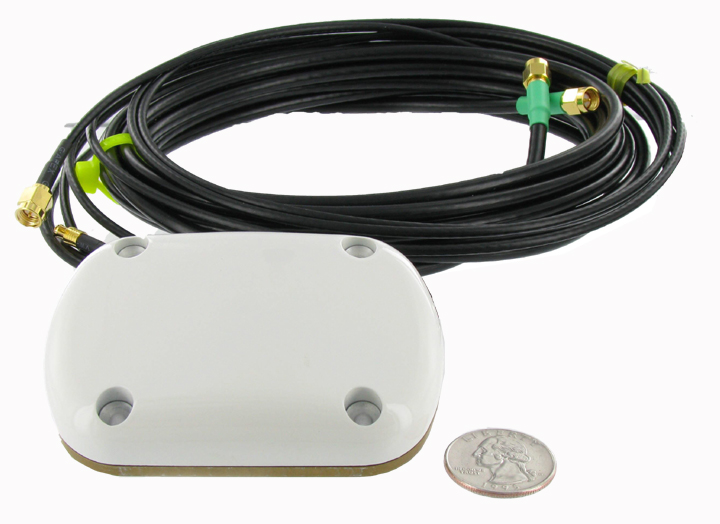

• Specifically designed antenna

Specifications:

• Power Source: 11 Volts (min) - 30 Volts (max)
• Transmit Frequency: 1610 - 1626 MHZ
• Receive Frequency: 1610 - 1626 MHZ
• Power Consumption:
  Transmit at 12V = 650mA (typical)
  Standby at 12V = 120mA (typical)
  Sleep at 12V < 1mA
• Size: 6.375 x 6.375 x 1.5 inches (16.19 x 16.19 x 3.81 cm)
• Weight: 25.6oz (725.7g)
• Transportation Vibration Requirements: Designed to exceed all SAE standards
• Transmit Power: 2 watts
• Operating Temperature: -40° to +185°F (-40° to +85°C)
• Digital Inputs: 1 @ 0 - 30 Volts
• Analog Inputs: 3 @ 0 - 5 Volts, 10-bit A/D
• Digital Outputs: 2 @ 12 Volts, 75ma (max)
• Serial RS232 port
