QSTARZ BT-Q1000P GPS Data Logger -Covert GPS Data Logger - Travel Recorder - Integrated With Bluetooth Navigation
What Can The BT-Q1000P Do?
The BT-Q1000P is a low priced, high performance GPS data logger. It will record and store up to 200,000 way points, based on your setting the interval of time/distance/speed, or a combination of all three variables. When using the time interval, the BT-Q1000P can record waypoints as fast as every three seconds!
What Can It Track & Where?
The BT-Q1000P will work anywhere on planet earth. You can passively track the route any vehicle, bicycle, motorcycle, animal or person. The battery will last 32 hours on a single charge.
State-Of-The-Art GPS Electronics:

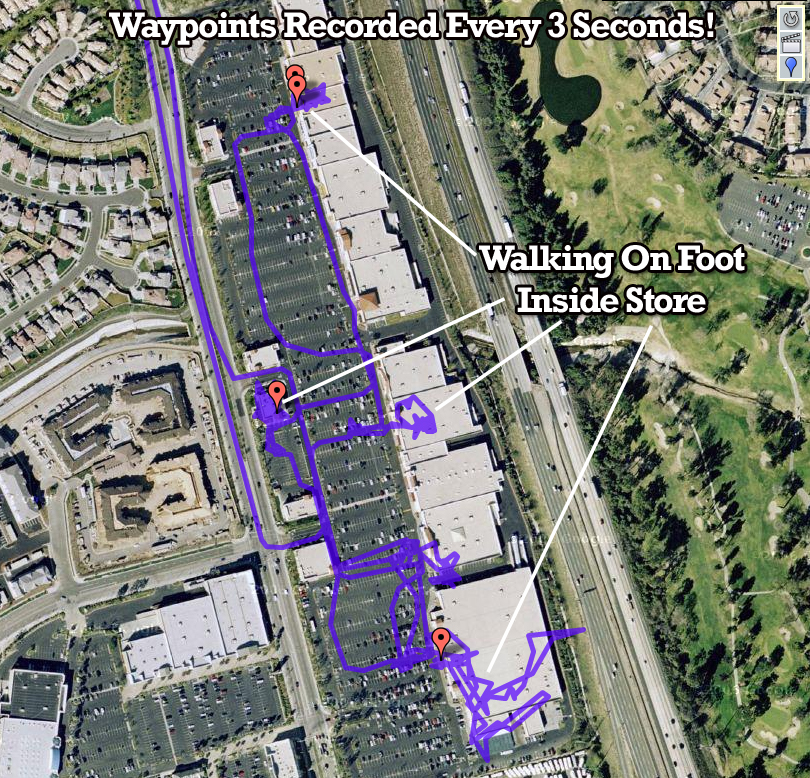

The BT-Q1000P employs state-of-the-art GPS electronics with the new GPS MTK Chipset. This highly sensitive chipset allows the device to record data where other older GPS devices would fail. One of our testers put the BT-Q1000P in his pocket and walked around a very large shopping plaza. When we downloaded the data to our computer, we were shocked to see his tracks as he walked through a giant retail store.
Record Locations With The Push Of A Button:
Take the BT-Q1000P along with you on vacation and record your tracks! Need to record the location of an important location? This GPS Data logger is equipped with a record on demand button, push it and later when the data is downloaded onto your computer, see the location the button was pushed.
How Do I View The Data Recorded By The BT-Q1000P?
Included with every device is a USB cable and user friendly software. Simply install the software onto your windows based computer, connect the BT-Q1000P to your computer via USB cable and the program will download the waypoints (locations) records into your computer. The tracks are displayed in the software utility via Google maps. The data from the included program can be exported to Google Earth. You can also see the speed of the device at each waypoint as well as altitude. Data can also be exported in
Plus You Can Also Use It With Your Bluetooth Enabled Smartphone To Navigate Your Route:
Yes that is right, set the BT-Q1000P to the NAV mode and it can communicate with your smartphone displaying your location..
Features:
Adopt MTK chipset with high sensitivity -158dBm and 51-Channel tracking
Lower power consumption up to 32hrs for travel recording
Stand-Alone travel recorder to log over 200,000 records
Easily switch Travel Recorder to LOG mode or NAV mode (Navigation + Log)
Provide Qstarz setup tool with friendly UI to download data from Travel Recorder
Support Multi-mode setting to record data Vehicle, Bicycle, Jog
Support button push manually to memorize your location immediately
Draw your navigation path immediately on Google Earth as default
Active NMEA protocol VTG / GLL manually via Qstarz setup tool.
Backup your travel record as CSV / NMEA / Google Earth file format.
Fast Position Fix ,Cold start 36s, Warm start 33s, Hot start 1s
Export Files In The Following Formats: NMEA, KML, KMZ, PLT
Data logged to the device can only be retrieved only via USB cable download.
Specifications:
General
Accuracy (none DGPS)
GPS Chip
MTK GPS Module
Position
Frequency
L1, 1575.42MHz
Without aid: 3.0m 2D-RMS<3m CEP(50%) without SA(horizontal)DGPS (WAAS, EGNOS, MSAS): 2.5m
C/A Code
1.023MHz chip rate
Velocity
Without aid: 0.1m/s, DGPS(WAAS, EGNOS, MSAS, RTCM): 0.05m/s
Channels
51-CH Performance tracking
Time
50 ns RMS
Antenna (Intemal)
Built-in patch antenna with LNA
Datum
WGS-84
Sensitivity
Dynamic Conditions
Tracking -158 dBm
Altitude
<18,000m
Acquisition Rate
Velocity
<515m/sec
Cold Start
36 sec, average
Acceleration
<4g
Warm Start
33 sec, average
Update
1Hz as default
Hot Start
1 sec, average
Interface
Reacquisition
< 1 sec.
Bluetooth
V1.2 compliant (SPP profile)
Power
Class 2 (15 meters in open space)
Built-in rechargeable Li-ion battery
Frequency: 2.4~2.4835 GHz
Input Voltage
Vin: DC 3.0-5.0V
Power On/Off
Slide switch
Backup Voltage
DC 1.2 ± 10%
Power Charge
Mini USB
Charging time
3hrs. (Typical)
GPS Protocol
NMEA-0183 (V3.01) - GGA, GSA,GSV, RMC(default); VTG, GLL(Optional), Baud rate 115200 bps, Data bit : 8, stop bit : 1(Default)
Environmental
Operating Temperature
- 10 ℃ to + 60 ℃
Storage Temperature
- 20 ℃ to + 60 ℃
Charging
0 ℃ to + 45 ℃
Device Size

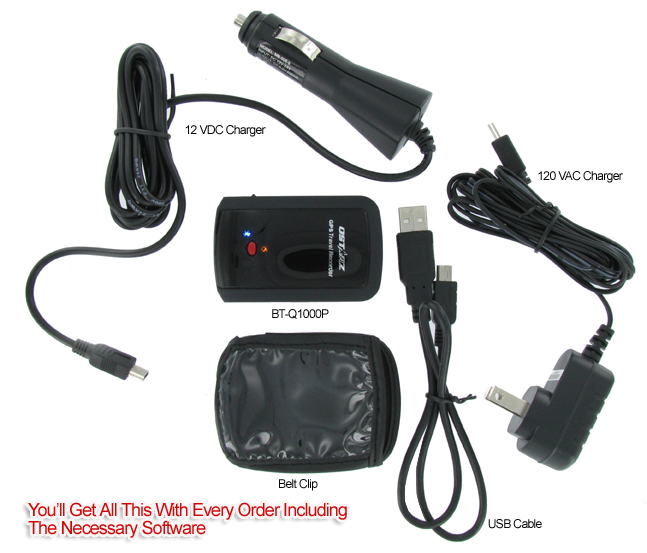

Accessories
72.2 (L) X 46.5 (W) X 20 (H) mm
110~220V Power Adapter
USB Cable
USB Bridge
Car Charger
Driver CD
Standard
Fully Compliant with USB2.0
Rechargeable Battery
Quick Guide
Full - Speed
12Mbps
This Is An Awesome Device Order One Today - We Promise If It Is Ordered Before 3 PM PST - Will Ship The Same Business Day Ordered. We Ship Worldwide! Quantity Discounts Are Available - email us for more information info@liveviewgps.com
Qstarz BT-Q1000P GPS Data Logger 200,000 Waypoints - 32 Hr Battery Life
Sale Price: $99.95
This Is A GPS Datalogger, There Are No Monthly
Subscription Fees. You Must Use The Included Software That Comes With The
BT-Q1000P (It Is Easy To Use). Data Is Downloaded From The GPS Logger To
Your Computer, Where You Will See The Exact Route The Device Has Traveled.
The BT-Q1000P Will Store Up To 200,000 Locations And Last 32 Hours On A
Single Charge. The Data Is Not In Real-Time.
