Live Trac Nav RTV20

Live Trac RTV20 | Dispatch | Navigation | Messaging

The Live Trac Nav RTV20 is a dedicated GPS tracking system that is optionally programmed to work with a Garmin Nuvi navigation unit. This integration will allow for two way messaging between the office and drivers, dispatching of drivers, as well as turn-by-turn directions for the driver.

We think one of the best features of the RTV20 is the ability to dispatch drivers. Simply type an address you would like to send your driver to, and the navigation unit will store the address until your drivers are ready to proceed to that specific location. The RTV20 is a standalone GPS tracking device, which on its own will update its position every 5 or 10 seconds when moving over a couple miles per hour.

Customers wishing to use the Garmin Nuvi navigation unit - must purchase the proprietary patch cable, as well as supply there own Garmin Nuvi units (will work with Garmin Dezl series, as well as 24XX, 22XX, 23XX, 12XX, 13XX, 14XX, and 465).

Easy To Use Web Based System NO SOFTWARE TO INSTALL...

Immediately upon logging in to our system you will see your vehicle's current position on a satellite hybrid map. Roll your mouse to zoom in closer - Get even closer and with the push of a button (Bird's Eye View) - view in stunning high definition your vehicles position overlayed on an actual AERIAL IMAGE. Move your mouse over your vehicle and see if your vehicle's ignition is on or off, current speed, and even direction of travel.

Get All These Reports:

Vehicle Maintenance Alerts
Standard Report/Enhanced Data Report
Start/Stop Reports - See Dates/Times/Location Duration Of Stop
Stop Start Based On Ignition Or Movement
Vapor Trail Report
Route Alerts - If vehicle deviates from route system sends alert
Ignition Alert
State To State Mileage
Aggressive Driving
Excessive Idling
Vehicle Mileage

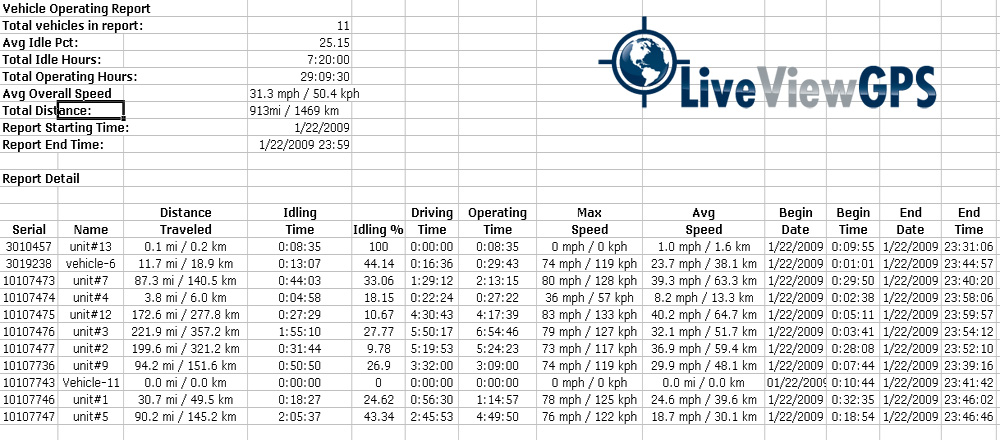

Vehicle Operating Report (Sample Emailed Excel Format)
Ignition Based Stop/Start (Sample Emailed Excel Format)
PTO Report
Speeding Report

Plus All These Features: State-Of-The-Art Web Based Live GPS Vehicle Tracking System. Integrated With Microsoft's Virtual Earth Mapping System. Our Complete System Will Allow You To:

Monitor Your Vehicles From Any Web Enabled Computer - Iphone Or Droid Phone
Watch Your Vehicles Live - Know Current Speed, Direction Of Travel & Location
Group Vehicles By Region, etc.
Receive Speed & Boundary Alerts To Any E-mail Or Cellphone Via Text Messaging
Monitor Traffic Live/Weather Live From The Control Panel
Record PTO activations
Panic Button Enabled (Can be used to record employee time in/out)
Lock/Unlock Doors*
Enable/Disable Starter*
Honk Vehicle Horn*
Remote Start*
*These features are enabled and ready to use at no additional cost, they do require additional relays.

How It Works:

There are 24 Global Positioning System satellites circling the earth. The RTV20 captures this information from up to 16 of these GPS satellites. With this data, we are able to calculate EXACT positions, speed and direction of travel. In a matter of seconds, the RTV5 processes this information and securely streams the data wirelessly back to our web servers - where you can view it LIVE from any computer with internet access. The RTV20 works throughout North America, South America and most countries and continents around the world. In the United States we transmit data on the AT&T Edge/3G all digital data wireless network.

INSTALLING THE RTV20 - WITH GARMIN NUVI INTEGRATION
